User Guide for xcube-resampling

xcube-resampling provides algorithms for representing a dataset in a different grid mapping. It supports:

  • Simple resampling via affine transformation
  • Reprojection between coordinate reference systems (CRS)
  • Rectification of non-regular grids to regular grids

All resampling methods are built around the GridMapping class, which represents a spatial grid mapping and contains all necessary information for resampling.

We first introduce the GridMapping class before explaining the three resampling algorithms.

GridMapping – the grid mapping object

A GridMapping defines the spatial structure of a dataset. It follows the CF conventions for grid mappings and provides a standardized way to describe geospatial grids. It stores metadata such as the coordinate reference system (CRS), spatial resolution, bounding box, spatial dimensions, coordinates, and tile size (for chunked datasets).

Grids can be defined in two ways:

  • 1D coordinates – regular grids defined by evenly spaced x/y or lat/lon axes.
  • 2D coordinates – irregular grids where each pixel has its own pair of x/y or lat/lon coordinates.

Creating a GridMapping object

There are three main ways to create a GridMapping instance:

1. Regular grid mapping

Use GridMapping.regular:

from xcube_resampling.gridmapping import GridMapping

gm = GridMapping.regular(size, xy_min, xy_res, crs)

Parameter descriptions can be found here.

2. Create a grid mapping from an existing dataset

Use the GridMapping.from_dataset method:

from xcube_resampling.gridmapping import GridMapping

gm = GridMapping.from_dataset(ds)
Here, ds is a xarray.Dataset. Further optional parameters can be found here.

Note: If no grid mapping is provided for the input dataset, the resampling functions use this method to derive one.

3. Create a grid mapping from coordinates

Use the GridMapping.from_coords method:

from xcube_resampling.gridmapping import GridMapping

gm = GridMapping.from_coords(x_coords, y_coords, crs)
Here, x_coords and y_coords are xarray.Array instances, and crs is the coordinate reference system (CRS). Further details of the parameters can be found here.

Derive new GridMapping instances

You can create new grid mappings from existing ones using:

  • derive: change selected properties.
  • scale: create a scaled version of a regular grid mapping.
  • to_regular: convert an irregular grid mapping to a regular one.
  • transform: change the CRS of a grid mapping (regular → irregular with 2D coordinates).

An example is available in the Example Notebooks.

Resampling Algorithms

The function resample_in_space integrates all three resampling algorithms and automatically selects the most appropriate one:

Algorithm Function Selection Criteria
Affine Transformation affine_transform_dataset Source and target grids are both regular and share the same CRS.
Reprojection reproject_dataset Source and target grids are both regular but have different CRS.
Rectification rectify_dataset Source grid is irregular with 2D coordinates.

With resample_in_space, users do not need to worry about selecting the right algorithm—the function determines and applies it automatically.

Common parameters for all resampling algorithms

Parameter Type / Accepted Values Description Default
variables str or iterable of str Name(s) of variables to resample. If None, all data variables are processed. None
interp_methods int, str, or dict mapping var/dtype to method. Supported:
• 0 — nearest neighbor
• 1 — linear / bilinear
• "nearest"
• "triangular"
• "bilinear"		 Interpolation method for upsampling spatial data variables. Can be a single value or per-variable/dtype mapping. 0 for integer arrays, else 1
agg_methods str or dict mapping var/dtype to method. Supported:
"center", "count", "first", "last", "max", "mean", "median", "mode", "min", "prod", "std", "sum", "var"		 Aggregation method for downsampling spatial data variables. "center" for integer arrays, else "mean"
recover_nans bool or dict mapping var/dtype to bool Enable NaN recovery during upsampling (only applies when interpolation method is not nearest). False
fill_values scalar or dict mapping var/dtype to value. Fill value(s) for areas outside input coverage.
• float — NaN
• uint8 — 255
• uint16 — 65535
• other ints — -1

1. Affine Transformation

An affine transformation can be applied when both the source and target grid mappings are regular and share the same CRS. The function affine_transform_dataset requires the input dataset and the target grid mapping.

For any data array in the dataset with two spatial dimensions as the last two axes, an affine transformation is performed using dask_image.ndinterp.affine_transform. The resulting dataset contains resampled data arrays aligned to the target grid mapping.

  • Data variables without spatial dimensions are copied to the output.
  • Variables with only one spatial dimension are ignored.

Note: The interp_methods parameter corresponds to the order parameter in dask_image.ndinterp.affine_transform. Only spline orders [0, 1] are supported to avoid unintended blending across non-spatial dimensions (e.g., time) in 3D arrays.

Simple examples of affine transformations are shown in the Example Notebook Affine Transformation.

2. Reprojection

Reprojection can be applied when both source and target grid mappings are regular but use different CRSs. The function reproject_dataset requires the input dataset and the target grid mapping.

The procedure is as follows:

  1. Check if the target grid resolution is coarser than the source grid resolution. If so, the source dataset is downsampled/aggregated using affine resampling.
  2. Transform the target coordinates to the source CRS, producing 2D irregular coordinates.
  3. For each transformed irregular pixel location, identify sub-pixel values in the regular source grid.
  4. Perform the selected interpolation using these sub-pixel values.

Supported interpolation methods are described in Section Interpolation Methods.

A large-scale example is shown in the Example Notebooks.

3. Rectification

Rectification is used when the source dataset has an irregular grid. The function rectify_dataset requires only the input dataset.

If no target grid mapping is provided, the source grid mapping is converted to a regular grid, and interpolation is performed so that the new dataset is defined on this regular grid.

The procedure is as follows:

  1. If the CRS differs, the 2D irregular source grid is transformed to the target CRS, resulting in 2D coordinates in the target CRS.
  2. If the target resolution is coarser than the source resolution, the source dataset is downsampled/aggregated using affine resampling.
  3. For each regular target grid point, determine the sub-pixel position in the irregular (optionally transformed) source grid.

Note: Determining sub-pixel positions in an irregular grid is more computationally expensive than the reprojection algorithm, as the lookup grid is irregular. These positions determine the neighboring points used for the selected interpolation method.

Supported interpolation methods are described in Section Interpolation Methods.

An example notebook demonstrating Sentinel-3 scene rectification is available in the Example Notebooks.

Interpolation Methods

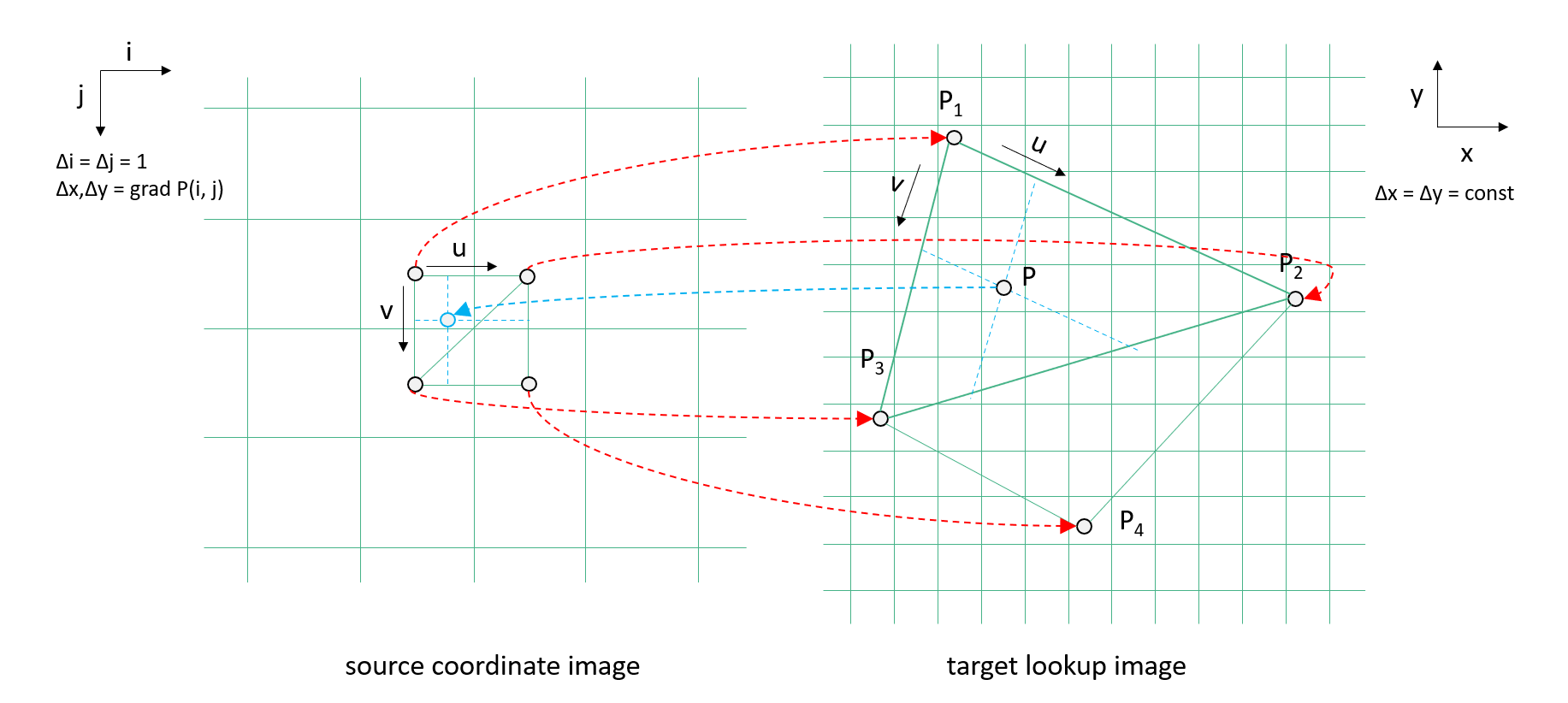

As mentioned in Section Reprojection and Section Rectification, two 2D coordinate images are generated, showing the subpixel fractions u, v of a target point with respect to the source grid points, as depicted in the following image:

Algorithm #2

This is the starting point for all three interpolation methods described below.

Nearest Neighbor - "nearest", 0

The simplest case is a nearest neighbor lookup, which determines the pixel value V of point P in the target grid mapping according to:

  • V = V1 if u <= ½ and v <= ½
  • V = V2 if u > ½ and v <= ½
  • V = V3 if u <= ½ and v > ½
  • V = V4 if u > ½ and v > ½

where V1, V2, V3, V4 are the pixel values of the corresponding points in the source dataset.

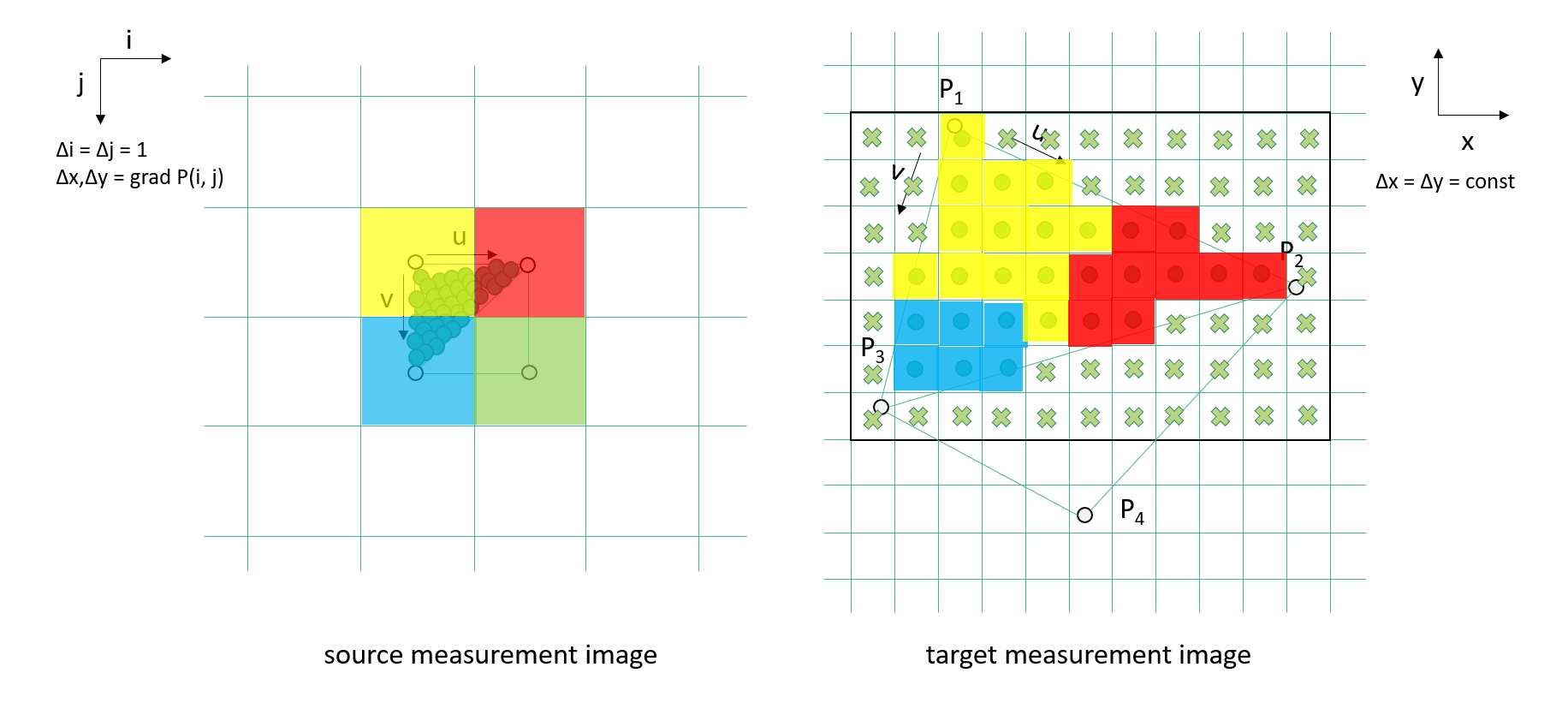

The interpolation is shown in the following image:

Algorithm #3

Bilinear - "bilinear", 1

Bilinear interpolation uses the four adjacent source pixels to compute the value V of point P in the target grid mapping according to:

V = VA + v (VB − VA)

with

VA = V1 + u (V2 − V1)
VB = V3 + u (V4 − V3)

where V1, V2, V3, V4 are the pixel values of the corresponding points in the source dataset.

Triangular - "triangular"

The triangluar interpolation can be used to speed up the bilinear interpolation. It uses three adjacent source pixels to determine the pixel value V of point P in the target grid mapping according to:

  • V = V1 + u (V2 − V1) + v (V3 − V1), if u+v < 1
  • V = V4 + (1 - u) (V3 − V4) + (1 - v) (V2 − V4), if u+v >= 1

where V1, V2, V3, V4 are the pixel values of the points in the source dataset.

Remarks

  1. If the target pixel size is much smaller than the source pixel size, and the source has low spatial resolution, results may be inaccurate. Curved source pixel boundaries must be considered for many projections.
  2. If x, y are decimal longitude and latitude, and the north or south poles are in the scene, the algorithm may fail. Workarounds include:
    • Transforming source coordinates into another suitable CRS first.
    • Transforming longitude values x into complex numbers and normalizing latitudes y to the range [-1, +1]:
      x' = cos(x) + i sin(x)
y' = 2y / π
