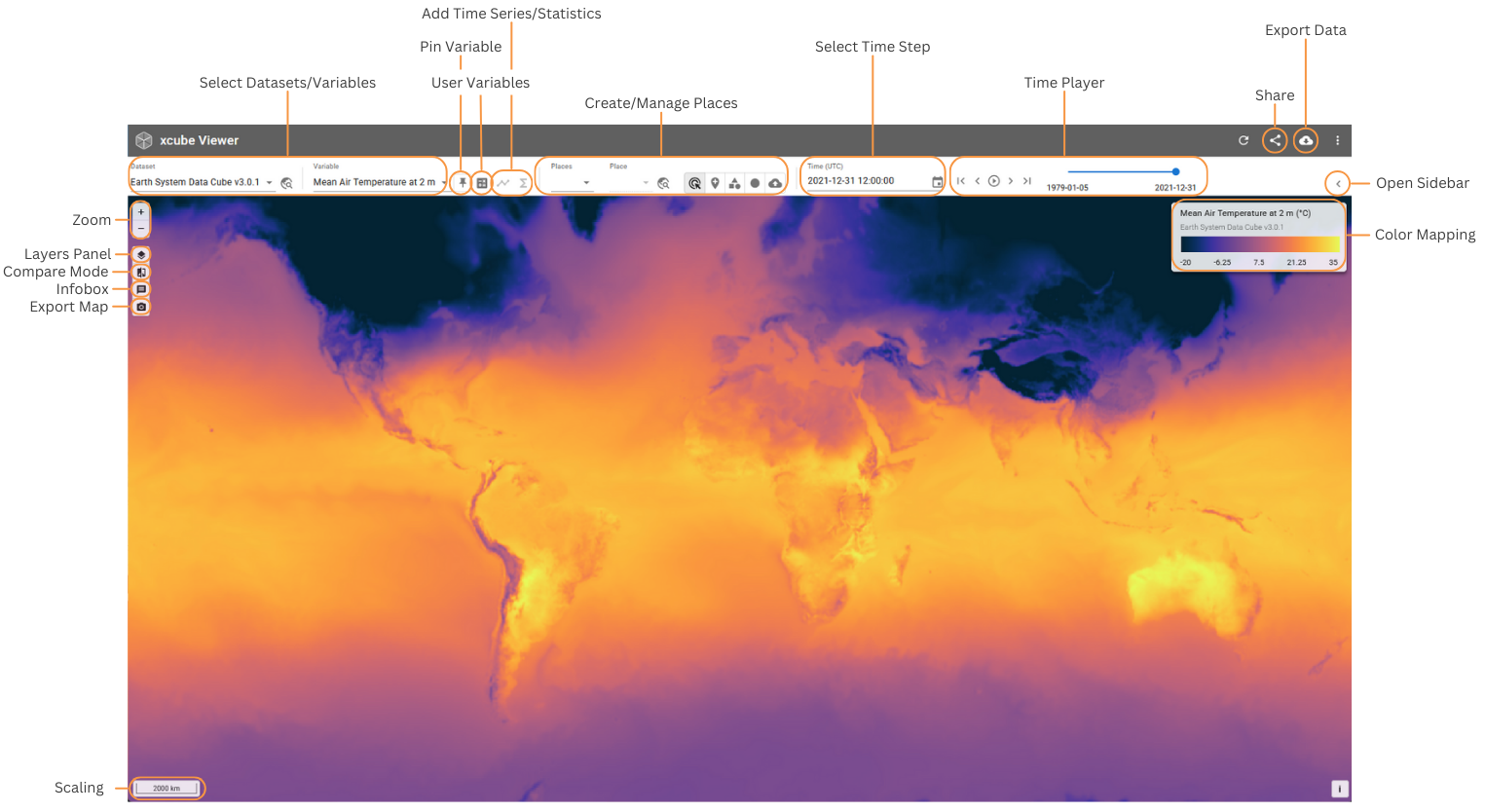

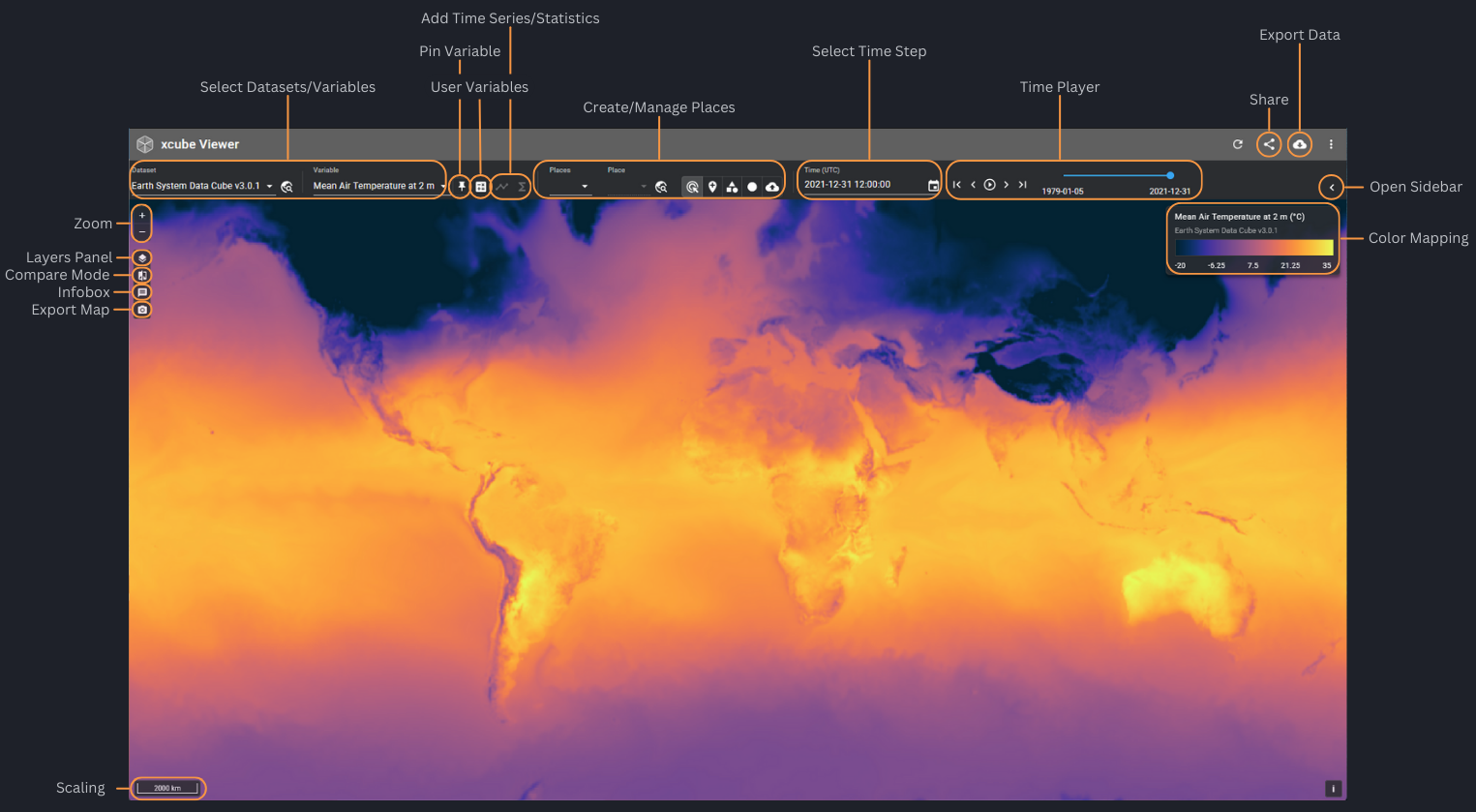

Feature References

A list of all the features that the viewer contains will be created here, in which the functionality of each one is explained in more detail.

General Features

Select Dataset

Feature Name	Select Dataset
Description	A drop-down menu, which is grouped by data format. The selected dataset is highlighted.
Functionality	The drop-down menu holds all datasets available on the server. When a new dataset is selected: The first variable in the dataset is automatically selected, or If the new dataset contains a variable with the same name as the previously selected variable, that variable will be pre-selected. Upon dataset selection the map can pan and zoom to the extent of the dataset. The map's zoom and pan behavior depends on the user-defined settings.
Link to feature mentioned in User Guide.

Locate Dataset in Map

Feature Name	Locate Dataset
Description	Button
Functionality	Pans and zooms to extent of selected dataset.

Select Variable

Feature Name	Select Variable
Description	A drop-down menu lists all variables in the dataset, ordered according to their sequence in the dataset. User-defined variables are marked with an icon and placed at the bottom of the list. The currently selected variable is highlighted.
Functionality	Displays all variables available in the dataset, along with any user-defined variables.
Aim	Enable users to easily access and switch between variables.
Link to feature mentioned in User Guide.

---

Show/Hide Layer Panel

Feature Name	Show/Hide Layer Panel
Description	Button, highlighted when feature is enabled
Functionality	Shows or hides the Layer Panel.
Aim	Enable users to control the visibility of layers.
Link to feature mentioned in User Guide.

Layer Panel

Feature Name	Layer Panel
Description	A draggable window displaying a list of available layers, with options at the bottom to add user-defined basemaps or overlays. Visible layers are marked with a checkmark, while pinned variables are indicated by a pin icon. This is the list of available layers in the Layers Panel: the selected variable pinned variable (marked with an icon) user and dataset places base map and overlay the boundary box of the selected dataset the RGB of both the selected and pinned dataset
Functionality	Open the panel by using the button on the left side of the map and control the visibility of the available layers by clicking on them in the list. Add or modify user variables or overlays at the bottom of the panel. Alternatively, that can also be done in the settings. Close the panel by by either clicking the X or the button again.
Aim	Enable users to control the visibility of layers.
Link to feature mentioned in User Guide.

Enable Info Box

Feature Name	Enable Info Box
Description	Button, highlighted when feature is enabled
Functionality	Enables the info box.
Aim	Enable users to use the info box.
Link to feature mentioned in User Guide.

Information Box

Feature Name	Information Box
Description	Displays an information box that provides pixel details for the area being hovered over. This includes latitude, longitude, the selected variable, and the pinned variable.
Functionality	Enable the info box feature by using the button on the left side of the map and hover over the map to access pixel information.
Aim	Enable users to quickly access information about a pixel.
Link to feature mentioned in User Guide.

Compare Variables

Pin Variables

Feature Name	Pin Variable
Description	Button that is highlighted when the currently selected variable is the pinned variable.
Functionality	Click the button to pin a variable. When a variable is pinned, the split mode for visual comparison is automatically activated, if it hasn't been opened yet. A variable can be unpinned by clicking the button again. If the variable should remain pinned but the split mode should be closed, the split mode button must be clicked.
Aim	To pin variables for comparison.
Link to feature mentioned in User Guide.

Split Mode

Feature Name	Split Mode
Description	A button, highlighted when the function is enabled. When the mode is activated, the screen is divided in the middle by a slidable line.
Functionality	Start the comparison mode by using the button. The map is now split in the middle and the currently selected variable is displayed on the right side of the slidable line. If a variable is pinned, it is displayed on the left side of the screen along with its color bar. The slidable line allows users to shift the view, enabling spatial comparison with underlying layers (e.g. basemaps, the pinned variable). The variable on the left can be made transparent to enhance the comparison. Side note: The comparison mode is automatically activated when a variable is pinned.
Aim	Enables visual comparison of the selected variable with another (pinned variable) or with other layers, such as a user basemap or dataset RGB.
Link to feature mentioned in User Guide.

User Variables

Open User Variable Management

Feature Name	Open User Variable Management
Description	A button that opens a window for managing user variables.
Aim	To open user variable management menu.
Link to feature mentioned in User Guide.

User Variable Management

Feature Name	User Variable Management
Description	A window for managing user variables, that displays a list of all existing user variables, including their name, title, units, and expression. It also contains various buttons for managing user variables, as well as a button that opens an informational text regarding user variables.
Functionality	Open the User Variable Management menu with this button in order to manage user variables with the following features: When no variable is selected: Add User Variable: To open a new window to create a user variable. When a user variable is selected: Add User Variable: To open a new window to create a user variable. Duplicate User Variable: To duplicate the selected variable, appending _copy to the title of the duplicate. Edit User Variable: To open a window similar to the Add User Variable window for editing the selected variable. Remove User Variable: To remove the variable from the list.
Aim	To manage user variables.
Link to feature mentioned in User Guide.

Add User Variable

Feature Name	Add User Variable
Description	A window that opens using the +-button in the User Variables Management menu. The window contains input fields for name, title, units, and expression. There is also an option to display various optional components of the expression.
Functionality	Open this feature by using the +-button in the User Variables Management menu and fill in the fields to create a new variable. To successfully add a variable, a valid name and a valid python expression must be provided. title and units are optional fields. The name must be a unique identifier within the User Variables and must start with a letter. The expression is an algebraic expression that follows the syntax of python expressions.
Aim	To add user variables.
Link to feature mentioned in User Guide.

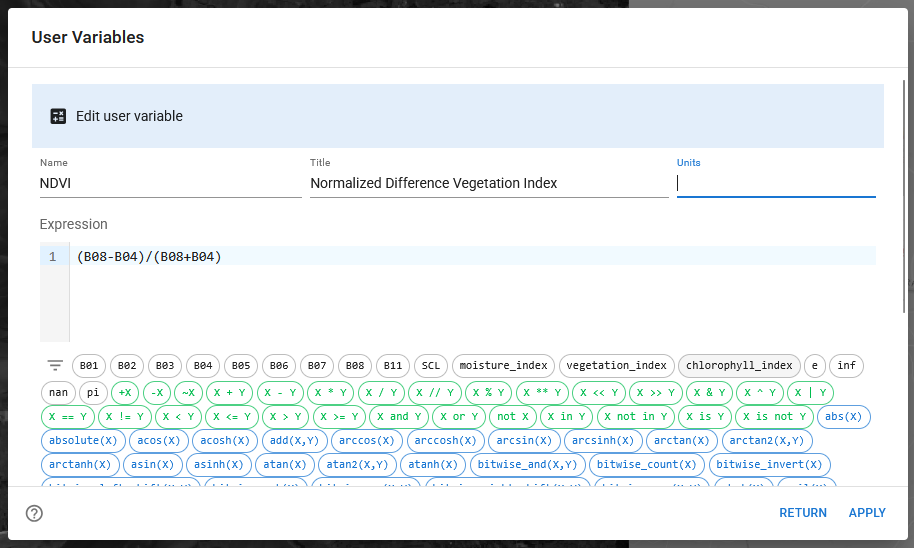

Edit User Variable

Feature Name	Edit User Variable
Description	A window that opens using the Edit-button in the User Variables Management menu. For layout see add user variables.
Functionality	See add user variables.
Aim	To edit user variables.
Link to feature mentioned in User Guide.

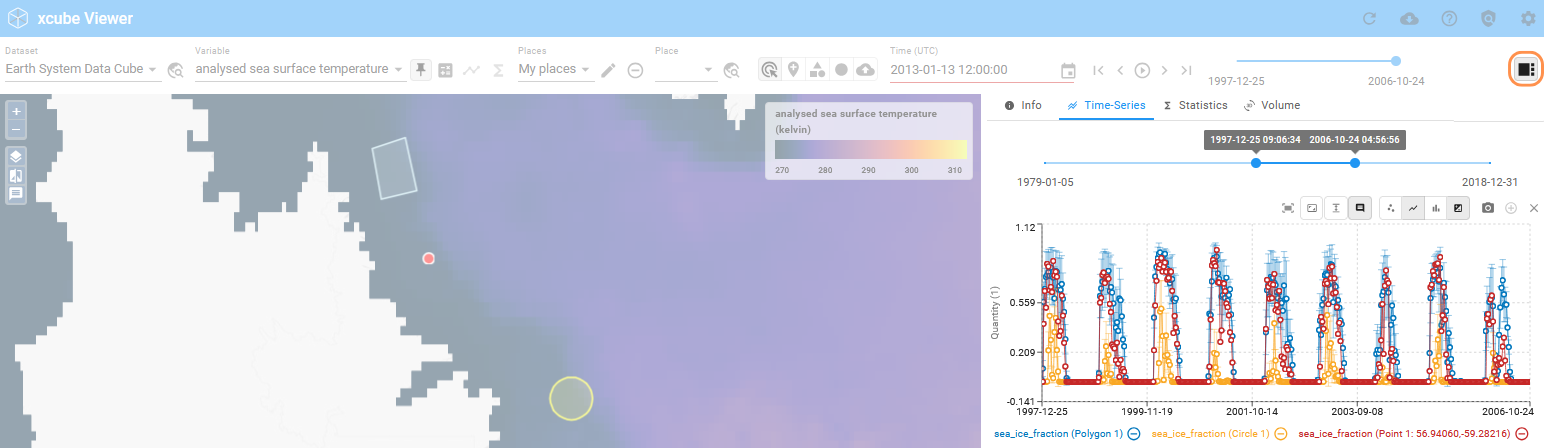

Metadata

Feature Name	Metadata
Description	Positioned in the sidebar, the metadata for the selected dataset, variable, or place is located under the "Info"-Tab. The display can be enabled using the buttons at the top left. When a display is enabled, the button's background appears highlighted in gray. Next to the displayed metadata information, three additional buttons control the format of the metadata display. Depending on the selected format, the enabled button's background is highlighted in gray.
Functionality	Open the sidebar and navigate to the "Info" tab to view the metadata. Enable the display for the object of interest: dataset, selected variable, or selected place. If no place is currently selected, the most recently selected place will be used. Then, choose the relevant metadata format: Textual: A summary of properties in a human-readable format. Tabular: A complete list of attributes presented in a table. JSON: All attributes shown as machine-readable JSON.
Aim	To provide metadata information for the dataset, the selected variable, or the selected place.
Link to feature mentioned in User Guide.

Time Series

Add Time Series

Feature Name	Add time series/ Show time-series diagramm
Description	A button in the top toolbar with a graph icon, initially disabled. It becomes available only when a place is selected.
Functionality	A place must be selected for the feature to work. If not already open, the sidebar will open upon using this feature, displaying the time series data for the selected place. If no data is available for the selected place, an informational pop-up window displays the message: No information data found here along with a warning. And no time series will be added to the diagram.
Aim	Create a time series for the selected variable of a selected place.
Link to feature mentioned in User Guide.

Add Initial Time Series

Feature Name	Initial Time Series
Description	The space under the "Time Series" tab in the sidebar varies depending on whether a time series graph is present. If no time series graph exists: A message indicates that no time series is currently displayed. Additionally a button in the header is also available, which becomes active (with blue font color) when a variable and place are selected and it is possible to create a time series.
Functionality	Open the sidebar and navigate to the "Time Series". Select a place and a variable, then click the button to display a time series. Alternatively, the time series can be created using the button in the header.
Aim	To create the initial time series graph for a selected place and variable in the sidebar.
Link to feature mentioned in User Guide.

Navigate Time Series Graphs

Feature Name	Navigate Time Series Graphs
Description	A time series graph is displayed in the sidebar under the "Time Series" tab. Time series extracted from the same variable are displayed in a combined plot, allowing for easy comparison. A slider located at the top of the section to controll the displayed time range. Additionally, several features for navigating through the time series plot are conveniently positioned at the top right of the graph. The places for which time series have been extracted are listed below each plot, displaying the place name and coordinates if they are points.
Functionality	Open the sidebar and navigate to the "Time Series". Remove time series graphs of places by clicking the -- button located below the plot next to the respective place. (h) Adjust the time range to focus on a specific period of interest. This applies to time series of different variables within a dataset (a) Additionally, enable the buttons on the top right to: Reset everything back to the full scale (b) Zoom into the graph freely by pressing the Ctrl-key (c) Set a fixed y-scale for the graph (d) Hover over the graph to view detailed information for specific time steps via a popup info box (e) Display data with points, lines, or bars. For polygons or circles, you can also add the standard deviation to the graph (f) Copy a snapshot a time series to clipboard (g)
Aim	To provide a range of functions for investigating time series data.
Link to feature mentioned in User Guide.

Statistics

Statistics Overview

Feature Name	Statistics Overview
Description	This tab, located in the sidebar, lists all generated statistics with the most recent ones at the top. When a variable and place are selected, an option to generate statistics for them appears above the list of existing statistics. This option becomes active once a place is selected.
Functionality	Open the tab in the sidebar and add new statistics with the +-button and remove statistics using the x-button.
Aim	To provide a dedicated space to display, generate, and manage statistics.
Link to feature mentioned in User Guide.

Add Statistics

Feature Name	Add Statistics
Description	A button in the top toolbar with a graph icon, initially disabled. It becomes active only when a location is selected.
Functionality	A place must be selected for the feature to work. If not already open, the sidebar will open upon using this feature, displaying the statistics for the selected place. If no data is available for the selected place, an informational pop-up window displays the message: No information data found here along with a warning. An empty table is shown in this case.
Aim	Create statistics for the selected variable of a selected place.
Link to feature mentioned in User Guide.

Statistics Display - Points

Feature Name	Statistics Display Points
Description	Located in the Statistics-tab, a table displays the value at the selected point's coordinates for the selected variable. Above the table, details are shown, including the dataset, variable, time step, and place name.
Functionality	Open the tab in the sidebar and add new statistics with the +-button and remove statistics using the x-button.
Aim	To display statistical information for places of type Point.
Link to feature mentioned in User Guide.

Statistics Display - Polygons/Circles

Feature Name	Statistics Display Polygons/Circles
Description	Located in the Statistics-tab, a table provides statistical values, including pixel count, minimum, maximum, mean, and standard deviation. A histogram displays these values, using the color associated with the place. Features to explore the statistics include: Adjust the x-range of the histogram (a) Add the standard deviation to the histogram (b) Copy a snapshot of the statistics to clipboard (c)
Functionality	Open the tab in the sidebar and add new statistics with the +-button and remove statistics using the x-button. Then, use the mentioned features to explore and work with the statistics
Aim	To display and explore statistical information for places of type Polygon or Circle.
Link to feature mentioned in User Guide.

Places

Select Place Group

Feature Name	Select Place Group
Description	A drop-down menu that lists place groups available on the server, along with a My Places group that contains all the places created in the Viewer. A selected group is marked with a checked checkbox and highlighted background.
Functionality	Select one or multiple groups in the drop-down menu by clicking on their names, which will be marked with a checkmark in the checkbox to display them on the map. Side note: Selecting a group does not automatically adjust the map's view to the extent of the place group.
Aim	Manage visibility of place groups.
Link to feature mentioned in User Guide.

Select Place

Feature Name	Select Place
Description	A drop-down menu that contains a list of all places within the selected place groups. The selected place is highlighted in the list.
Functionality	Select a place by clicking on it in the list. The selected place will be visually highlighted on the map with a yellow outline. The map automatically pans and zooms to the selected place, if selected in the settings.
Aim	Select and focus on a specific place.
Link to feature mentioned in User Guide.

Select Place in Map

Feature Name	Select Place in Map
Description	A button that is highlighted when enabled.
Functionality	Select a place by clicking on it directly in the map. The selected place will be visually highlighted on the map with a yellow outline.
Aim	Select a place directly in the map.
Link to feature mentioned in User Guide.

Rename Place Group/ Place

Feature Name	Rename Place Group/ Place
Description	A button located next to the drop-down menu.
Functionality	Provides the option to rename the selected place or place group. Important: Only place groups created within the Viewer and their associated places can be renamed.
Aim	Rename a place group or individual place.
Link to feature mentioned in User Guide.

Remove Place Group/ Place

Feature Name	Remove Place Group/ Place
Description	A button located next to the drop-down menu.
Functionality	Removes the selected place or place group. Important: Only place groups created within the Viewer and their associated places can be removed.
Aim	Remove a place group or individual place.
Link to feature mentioned in User Guide.

Style Place

Feature Name	Style Place
Description	A button that opens a small window for adjusting color and opacity. When clicking on the color box, a drop-down menu with a variety of colors appears. The opacity is controlled with a slider.
Functionality	Adjust the appearance (color and opacity) of the selected place in the window that appears when clicking the button. The changes are immediately reflected on the map. The selected color also determines the representation of points in time series chart.
Aim	Change the appearance of a place.
Link to feature mentioned in User Guide.

Locate Place in Map

Feature Name	Locate Place in Map
Description	A button located next to the selection of places.
Functionality	Pans and zooms to the selected place on the map.
Aim	Locate the selected place on the map.

Add Place

Feature Name	Create Place
Description	A button that is highlighted when enabled.
Functionality	Click on one of the three buttons to create a new place directly in the map. The available geometry types are: Point, Polygon, and Circle. The newly created place is automatically set as the selected place. The names of places are chosen according to their geometry type and order, e.g., Circle 1. When creating a new place, a time series for the selected variable is created and displayed in the side bar automatically. If no data is available for the new place in the dataset, a pop-up window appears with the message: No information data found here. Side note: When the feature is disabled, the Select place in map mode is automatically enabled.
Aim	Create a place directly in the map.
Link to feature mentioned in User Guide.

Import Places

Feature Name	Import Places
Description	A button that is highlighted when enabled and opens a window for importing places. In the window Supports importing places in various formats, including text/CSV, GeoJSON, and WKT.
Functionality	Open the feature by clicking on the button, then: Decide on the data format of the imported places (text/CSV, GeoJSON, or WKT) Import places through different methods: Open from file: Opens a window to browse and select a file locally. Enter text: Manually input data into a text box. Drag & drop: Drag a file into the designated area to load it into the text box. Remove the content of the text box with the Clear-button. This is only available when the box contains data. Options-button: Can be expanded to provide additional information and settings related to the import process.
Aim	Enable import of places from various sources, making it easier to manage and display custom places within the Viewer.
Link to feature mentioned in User Guide.

Open Export Data Menu

Feature Name	Open Export Data Menu
Description	A button that opens the Export Data menu.
Aim	To open the Export Data menu.
Link to feature mentioned in User Guide.

Export Data

Feature Name	Export Data
Description	A pop-up window that provides options for configuring the export settings for time series and place geometries.
Functionality	Open the export settings by using this button in the header of the Viewer and select options for export: Include time series data (file format: .txt) Separator for time series data (default: ,) Include place data (file format: .geojson) Combine place data into a single file Export as a ZIP archive Filename configuration
Aim	To export places and/or time series created within the Viewer.
Link to feature mentioned in User Guide.

Navigate Time Steps

Select Time Steps (Calender)

Feature Name	Select Time Step (Calender)
Description	A button that opens a calendar window when enabled.
Functionality	The button opens a calendar window when clicked. Click on a date in the calendar, to select and display the time step that is closest to the chosen date. The time resolution (HH:MM:SS) is not supported yet, but it will be displayed in the calendar view if the resolution is available in the dataset.
Aim	Easily navigate and select specific time steps within a dataset using a visual calendar interface.
Link to feature mentioned in User Guide.

Select Time Steps (Slider)

Feature Name	Select Time Step (Slider)
Description	A time slider to navigate through the time steps of the selected variable. The slider is labeled with the first and last time steps of the dataset at the start and end points.
Functionality	Move the slider to select and display the desired time step.
Aim	Easily navigate and explore time steps within a dataset.
Link to feature mentioned in User Guide.

+/- 1 Time Step

Feature Name	Move to +/- 1 Time Step
Description	Buttons, designed according to its function, allowing to navigate to either the previous or next time step of the dataset.
Functionality	Click the buttons to move to the previous/next time step in the dataset and display the corresponding data on the map.
Aim	Quick navigation option to access the previous and next time steps in the dataset.
Link to feature mentioned in User Guide.

First/Last Time Step

Feature Name	Move to first/last Time Step
Description	Buttons, designed according to its function, allowing to navigate to either the first or last time step of the dataset.
Functionality	Click the buttons to move to the first/last time step in the dataset and display the corresponding data on the map.
Aim	Quick navigation option to access the first and last time steps in the dataset.
Link to feature mentioned in User Guide.

Auto-step

Feature Name	Auto-step
Description	A button that changes its appearance when the feature is activated, while disabling the buttons used to navigate through time steps.
Functionality	When enabled, the feature iterates through the time steps sequentially, displaying each step in the Viewer. The speed or interval of this iterating can be configured in the settings. Click the button again to pause.
Aim	Engaging way to visually explore multiple time steps.
Link to feature mentioned in User Guide.

Color Mapping

Legend

Feature Name	Legend
Description	Displays the current color map, the value range, and the long name of the variable along with its units (these details are extracted from the dataset). The color mapping is selected automatically based on the configuration in xcube Server. The value range and color bar are hidden buttons, providing access to adjust the value range and color map.
Functionality	The legend is interactiv: Click on the color map open the Color Mapping Menu. Click on the ticks of the value range to adjust the range via a small pop-up window.
Aim	Display the color mapping of the current variable and provide access to further adjustments regarding the color mapping.
Link to feature mentioned in User Guide.

Value Range

Feature Name	Adjust Value Range
Description	A window that opens when clicking on the value range of the color bar in the legend, to adjust the settings of the value range. This includes: A slider to manually adjust the minimum and maximum values. Text fields to enter minimum and maximum values. A toggle button on the top-right corner to enable log-scaling. A toggle button for applying the value range of the color map. This feature is only available if the color map has an assigned value range.
Functionality	Open the feature by clicking on the legend area where the value ticks are shown. Then use the available features to adjust the edges of the value range, to use a log-scaling or to apply the assigned value range of the color map.
Aim	Adjust the value range of the current color mapping .
Link to feature mentioned in User Guide.

Color Map Menu

Feature Name	Color Map Menu
Description	A window that opens when clicking on the color bar in the legend. This menu provides: access to custom colormap management a list of already available color maps options for hiding small values (button) options for adjusting opacity (slider) options for reversing the color map (button) (button)
Functionality	Open the menu by clicking on the colormap in the legend. Then use the menu to access custom colormap management, select new colormaps or adjust the currently selected.
Aim	Manage custom color maps, change, adjust and modify the current color mapping.
Link to feature mentioned in User Guide.

Custom Color Maps

Feature Name	Custom Color Maps
Description	A small workspace that appears when clicking the +-button in the Color Mapping Menu or when editing an existing custom color map. Displayed at the top is the color bar, then there is the option to select the color map type followed by a text field where users can define or edit the color map.
Functionality	Access the Custom Color Map workspace by using the +-button in the Color Mapping Menu or entering the editing mode for custom color maps. In the workspace: Decide on the color mapping type (continious, stepwise, categorical). In the text box, define the mapping using the general syntax <value>: <color>.
Aim	Select, create, edit or delete custom color maps.
Link to feature mentioned in User Guide.
